Fire Fighting

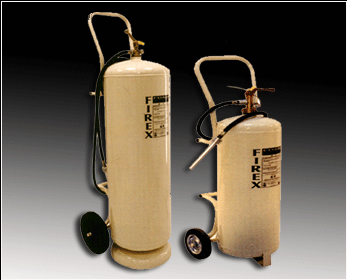

FIRE EXTINGUISHERS : MOBILE FOAM FIRE EXTINGUISHER

AFFF (Aqueous Film Forming Foam) is an extinguishant which seals the burning surface against re-ignition. It is mainly intended for fires in petrol, oil, and other liquids, but is also highly effective against fires in wood, textiles, and other materials.

Discharge is controlled via a handy pistol gun with a special foam-making branch pipe, providing rapid knock-down effect on surface fires. Cylinders have bursting pressures well above average, made from high-quality steel and internally coated for corrosion protection.

Externally, cylinders are coated with electrostatic polyester powder, oven-baked at 180°C, and equipped with rust-free quick-opening brass valves incorporating safety valves.

Portable Dry Powder Extinguisher 1
Portable Dry Powder Extinguisher 2

Technical Data

Model TF 25 TF 10G TF 50 TF 100
Extinguishing Agent AFFF
Class of Fire AB AB AB AB
Total Weight (kg) 47.0 63.0 82.0 151.0
Capacity (kg) 25 37.8 50 100
Testing Pressure (bar) 25
Coating Electrostatic Polyester Powder
Total Height - H (mm) 860 120 1000 1000
Total Width - W (mm) 450 450 550 650
Total Depth - D (mm) 400 400 380 850
Hose Length (mm) 3000 3000 5000 5000
Maximum Effective Range (m) 8
Duration of Discharge (sec) 19-23 29-33 38-42 77-82
Storage Temperature (°C) >0 to +60
